產品中心

SPARE PARTS WP-17-18-26

咨詢服務熱線：0086-519-83977957

技術參數

Item	Ref.	Description \|
1	57Y02	Back cap Long
	57Y03	Back cap Medium
	57Y04	Back cap Short
2	10N21	Collet O 0.5mmx020"
	10N22	Collet O 1.0 mmx040"
	10N23	Collet O 1.6mmx1/16"
	10N24M	Collet CD 2.0mmx5/6411
	10N24	Collet O 2.4mmx3/3211
	10N25	Collet 0 3.2mmx1/8"
	54N20	Collet O 4.0mmx5/32"
2.1	10N23	Collet O 1.6mmx1/16"
	10N24	Collet 0 2.4mmx3/3211
	10N25	Collet 0 3.2mmx1/8"
3	10N21S	Collet StubbyO 0.5 mmx020"
	10N22S	Collet StubbyO 1.0 mmx040"
	10N23S	Collet StubbyO 1.6mmx1/16"
	10N24MS	Collet StubbyO 2.0 mmx5/6411
	10N24S	Collet StubbyO 2.4 mmx3/3211
	10N25S	Collet StubbyO 3.2 mmx1/8"
4	18CG	Cup gasket
5	54N01	Gas lens cup insulator
6	54N63	Jumbo cup insulator
7	18CG20	Stubby cup insulator
8	10N29	Collet bodyO 0.5 mmx020"
	10N30	Collet bodyO 1.0 mmx040"
	10N31	Collet bodyO 1.6mmx1/16"
	10N31M	Collet bodyO 2.0 mmx5/64"
	10N32	Collet bodyO 2.4 mmx3/32"
	10N28	Collet bodyO 3.2 mmx1/8"
	406488	Collet bodyO 4.0 mmx5/3211
9	45V29	Collet body gas lens O 0.5 mm./.020"
	45V24	Collet body gas lensO 1.0 mm./.040"
	45V25	Collet body gas lens O 1.6mm./.1/16"
	45V25M	Collet body gas lens O 2.0 mm./.5/64"
	45V26	Collet body gas lens O 2.4 mm./.3/32"
	45V27	Collet body gas lensO 3.2 mm./.1/8"
	45V28	Collet body gas lens O 4.0 mm./.5/32"
10	45V0204	Collet body Jumbo O 1.0 mm./.040"
	45V116	Collet body Jumbo O 1.6mm./.1/16"
	45V64	Collet body Jumbo O 2.4 mm./.3/32"
	995795	Collet body Jumbo O 3.2 mm./.1/8"
	45V63	Collet body JumboO 4.0 mm./.5/32"
11	17CB20	Collet Body Stubby
12	10N50	Alumina nozzlel.D.6.5 mmx1/4"-size 4
	10N49	Alumina nozzlel.D.8.0 mmx5/16"-size 5
	10N48	Alumina nozzlel.D.9.5 mmx3/8"-size 6
	10N47	Alumina nozzlel.D.11.0 mmx7/16"-size 7
	10N46	Alumina nozzlel.D.12.5 mmx1/2"-size 8
13	10N45	Alumina nozzlel.D.16.0 mmx5/8"-size 10
13	10N44	Alumina nozzle LD.19.5 mm.3/4"-size 12
14	10N50L	Alumina nozzle LD.6.5 mm.1/4"-size 4
	10N49L	Alumina nozzle LD.8.0 mm.5/1 6"-size 5
	10N48L	Alumina nozzle LD.9.5 mm.3/8"-size 6
	10N47L	Alumina nozzle LD.11.0 mm.7/1 6"-size 7
	10N46L	Alumina nozzle LD.12.5 mm.1/2"-size 8
15	54N18	Alumina nozzle gas lens LD.6.5 mm.1/4"-size 4
	54N17	Alumina nozzle gas lens LD.8.0 mm.5/1 6"-size 5
	54N16	Alumina nozzle gas lens LD.9.5 mm.3/8"-size 6
	54N15	Alumina nozzle gas lens LD.11.0 mm.7/16"-size7
	54N14	Alumina nozzle gas lens LD.12.5 mm.1/2"-size 8
	54N19	Alumina nozzle gas lens LD.19.5 mm.3/4"-size 12
16	54N17L	Alumina nozzle gas lens I.D.8.0mm.5/16"-size 5
	54N16L	Alumina nozzle gas lens LD.9.5 mm.3/8"-size6
	54N15L	Alumina nozzle gas lens LD.11.5 mm.7/16"-size 7
	54N14L	Alumina nozzle gas lens I.D.12.5mm.1/2"-size 8
17	57N75	Alumina nozzle gas lens LD.9.5 mm./3/8"-size 6
	57N74	Alumina nozzle gas lens LD.12.5 mm./1/2"-size8
	53N88	Alumina nozzle gas lens I.D.16.0 mm./5/8"-size 10
	53N87	Alumina nozzle gas lens I.D.19.5 mm.3/4"-size 12
18	53N89	Alumina nozzle JumboLD.24.0 mm/1.0 -size 15
19	13N08	Alumina nozzle LD.6.5 mm.1/4"-size 4
	13N09	Alumina nozzle LD.8.0 mm.5/1 6"-size 5
	13N10	Alumina nozzle LD.9.5 mm.3/8"-size 6
	13N11	Alumina nozzle LD.11.0 mm.7/1 6"-size 7
	13N12	Alumina nozzle I.D.12.5 mm.1/2"-size 8
	13N13	Alumina nozzle I.D.16.0 mm.5/8"-size 10

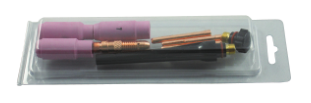

20		Consumable kit
20		Consumable kit withOI .6WC orO2.4WC
21		Consumable purse kit
22		Consumable purse kit withOI .6WC orO2.4WC
